In the era of ultra-high-definition content, Custom HDMI 2.1 fiber optic cables have become the backbone of long-distance 8K signal transmission. But what exactly goes into manufacturing these advanced cables? This article explores the complete production process—from raw material selection and optical-copper hybrid integration to chipset embedding and durability testing. Whether you’re a long distance HDMI cable 8K manufacturer or an 8K HDMI AOC 100m supplier, understanding each stage of production is key to delivering stable, high-performance HDMI 2.1 solutions. Read on to learn how these cables are engineered for exceptional clarity, bandwidth, and reliability across demanding AV environments.
The manufacturing journey of a Custom HDMI 2.1 fiber optic cable begins with selecting premium-quality materials, especially the optical fiber core. This core must support high-bandwidth transmission up to 48Gbps, required for true 8K video clarity. Most reputable long distance HDMI cable 8K manufacturers use high-purity glass fibers with low attenuation levels, ensuring that signals can travel up to 100 meters without loss or delay. In this stage, suppliers also choose the right type of fiber—either OM3, OM4, or single-mode—depending on the application, durability needs, and flexibility. By investing in superior base materials, an 8K HDMI AOC 100m supplier ensures the foundation for reliable, high-speed transmission over long distances.
Unlike traditional HDMI cables, HDMI 2.1 AOC (Active Optical Cable) requires a combination of optical fibers and copper conductors. This hybrid structure allows the cable to carry TMDS video signals over fiber while maintaining control signals over copper. In this step, advanced splicing and alignment techniques are used to precisely fuse the optical fibers with laser diodes and photodetectors, which convert signals from electrical to optical and vice versa. Custom HDMI 2.1 fiber optic cable production requires microscopic alignment accuracy to prevent signal degradation. The use of active chipsets is essential here, enabling active signal boosting, which is critical for maintaining stability over 100-meter distances—making it ideal for long-range professional applications such as in commercial AV setups.
To achieve full HDMI 2.1 functionality—including support for 8K@60Hz, 4K@120Hz, Dynamic HDR, and eARC—a key part of the production process is the integration of ultra-high-speed chipsets. These chipsets decode and encode video data with minimal latency. 8K HDMI AOC 100m suppliers integrate compliant chips that not only meet the HDMI 2.1 specification but also manage power efficiently to reduce heating in long runs. Calibration is critical at this stage: each cable undergoes signal timing testing to ensure synchronization across all 19 conductors. This meticulous process guarantees that Custom HDMI 2.1 fiber optic cables deliver the fidelity and performance demanded by next-generation 8K content.

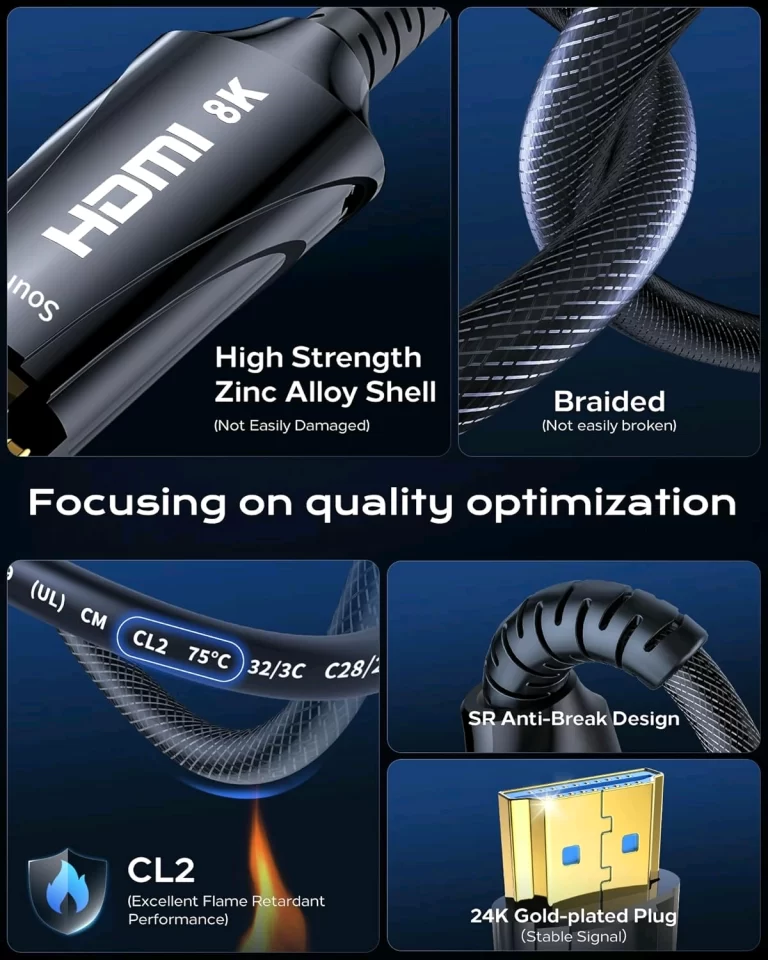

Beyond internal signal integrity, the cable’s outer construction plays a vital role in field durability. A top-tier long distance HDMI cable 8K manufacturer ensures the cable is housed in flame-retardant, abrasion-resistant jackets such as PVC or LSZH, depending on use-case requirements. For long-distance installations—like in auditoriums, stadiums, or broadcast facilities—the cable must also offer excellent bend radius flexibility and be resistant to EMI (electromagnetic interference). Kevlar yarns are sometimes woven into the jacket for added tensile strength. This step ensures the final Custom HDMI 2.1 fiber optic cable is rugged enough for demanding environments while still maintaining high signal integrity.
The final stage involves a strict quality control protocol. Each 8K HDMI AOC 100m cable undergoes real-time signal testing using 8K source and display devices to validate frame accuracy, HDR support, and error rates. Eye pattern testing and bit error rate (BER) tests ensure the cable meets HDMI Forum and CE/FCC standards. Custom solutions also include customer branding, private labeling, and custom lengths. As a Custom HDMI 2.1 fiber optic cable supplier, delivering OEM/ODM services that cater to system integrators or AV installers gives your brand a competitive edge in the B2B market.
The production of Custom HDMI 2.1 fiber optic cables is a technologically intensive process that requires precision, quality materials, and deep understanding of HDMI protocols. From selecting fiber cores to integrating active components and performing rigorous final tests, the process ensures flawless 8K video delivery over distances up to 100 meters. Whether you’re a long distance HDMI cable 8K manufacturer or a professional 8K HDMI AOC 100m supplier, mastering these manufacturing steps is essential to stay competitive in the expanding world of ultra-high-definition AV solutions.
Looking for high-quality, Custom HDMI 2.1 fiber optic cable solutions for your project? We specialize in manufacturing high-performance cables and support a variety of customized specifications to meet your various needs. Contact us now to get professional advice and quotes to make your connection better!
